TP-Link Omada SM5110-LR 10Gbase-LR SFP+ LC Single-Mode Transceiver - SM5110-LR - [SG Ready Stock]

Product Highlights

  • 10Gbps full line-rate speed
  • 10 km single-mode reach
  • Hot-pluggable installation
  • DDM monitoring support
  • 5 year manufacturer warranty

Description

Deliver reliable 10 Gigabit fiber connectivity up to 10 km with the TP-Link Omada SM5110-LR SFP+ transceiver. Built for enterprise, campus and ISP networks, this module provides full line-rate 10Gbps transmission without speed loss over single-mode fiber.

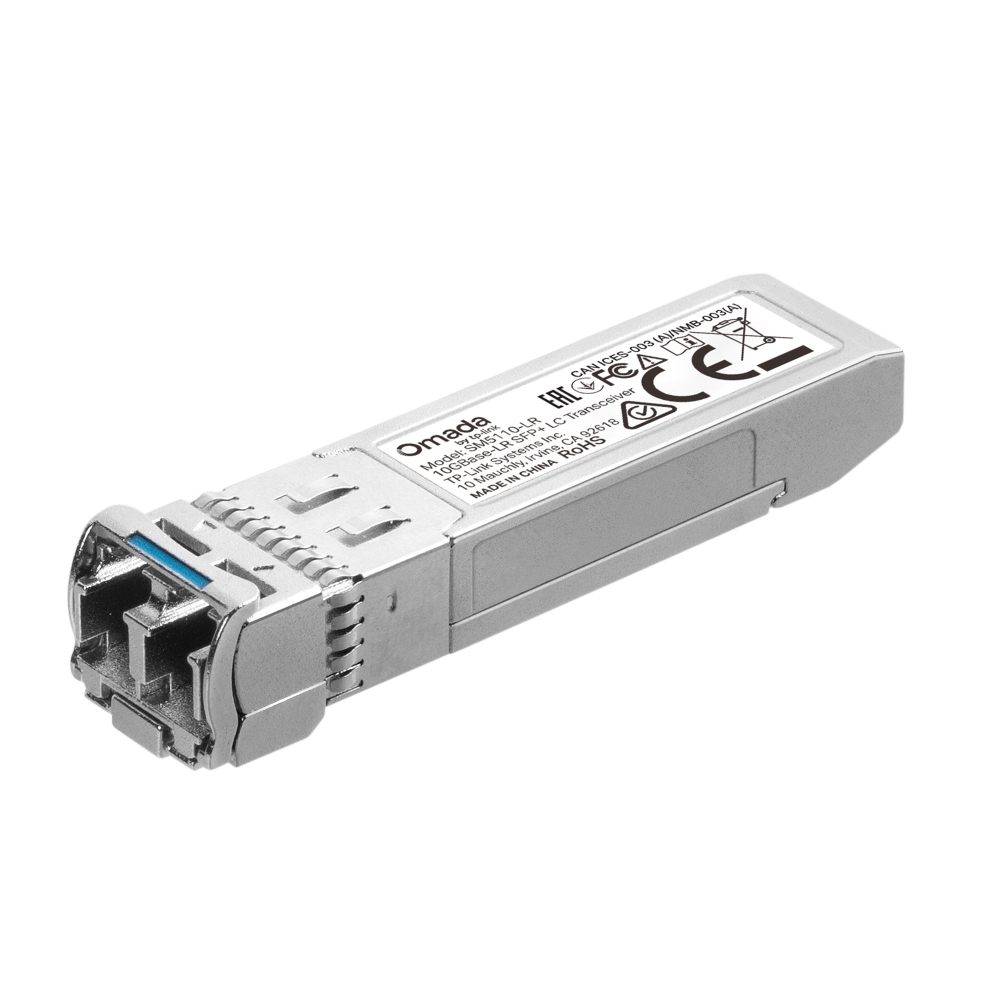

Product front view

Performance & Specifications

  • 10.3125 Gbps full-duplex transmission speed
  • 1310 nm wavelength, single-mode fiber operation

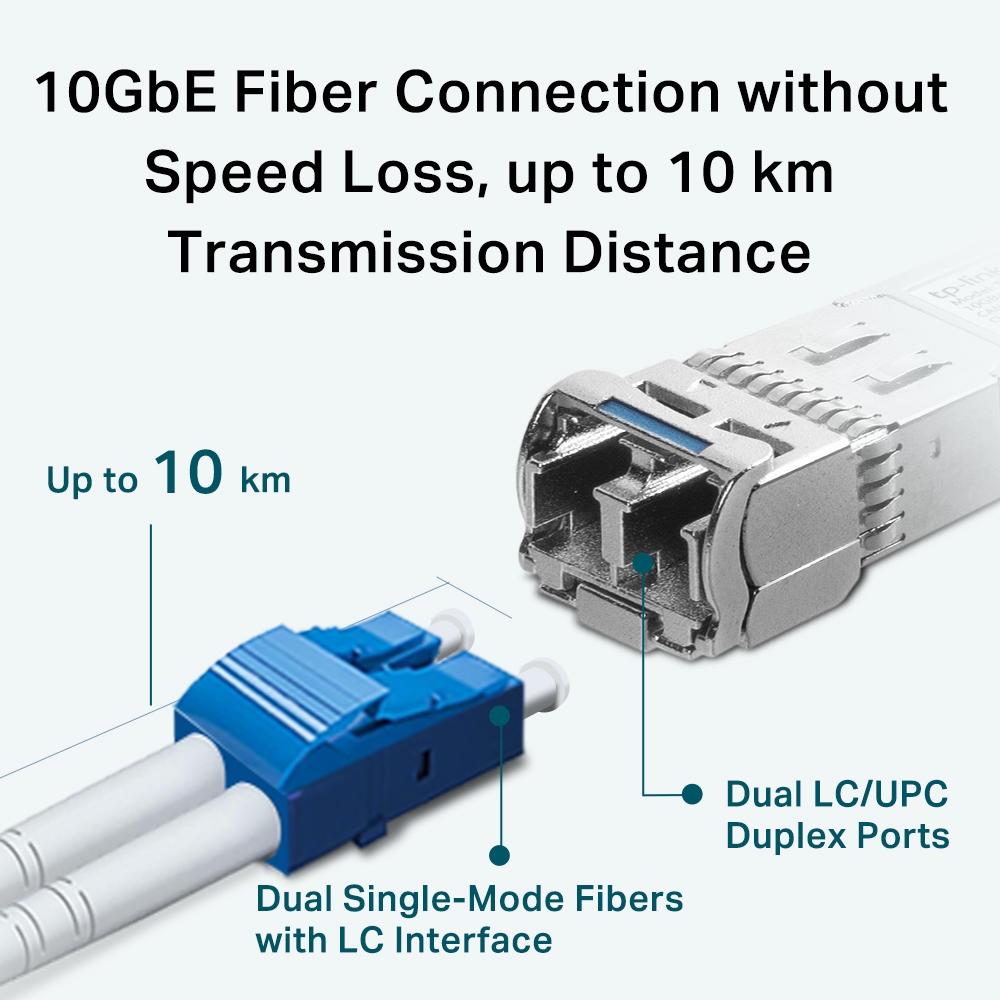

  • LC duplex connector interface
  • Maximum transmission distance: 10 km
  • Supports Digital Diagnostic Monitoring (DDM)
  • Hot-pluggable for live installation without network downtime

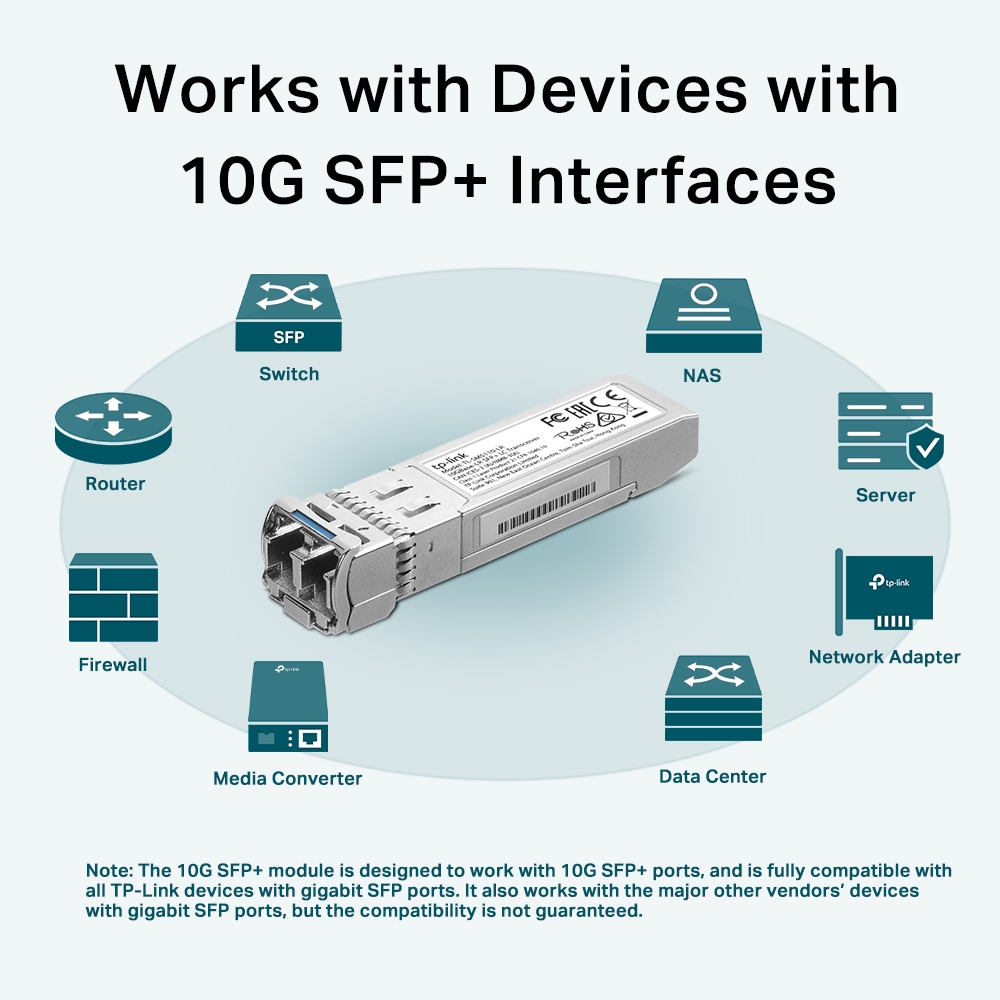

Connection diagram

Compatibility

Works natively with all TP-Link Omada switches, routers, firewalls and network devices equipped with 10G SFP+ ports. Also interoperable with standard SFP+ MSA compliant hardware from major network vendors.

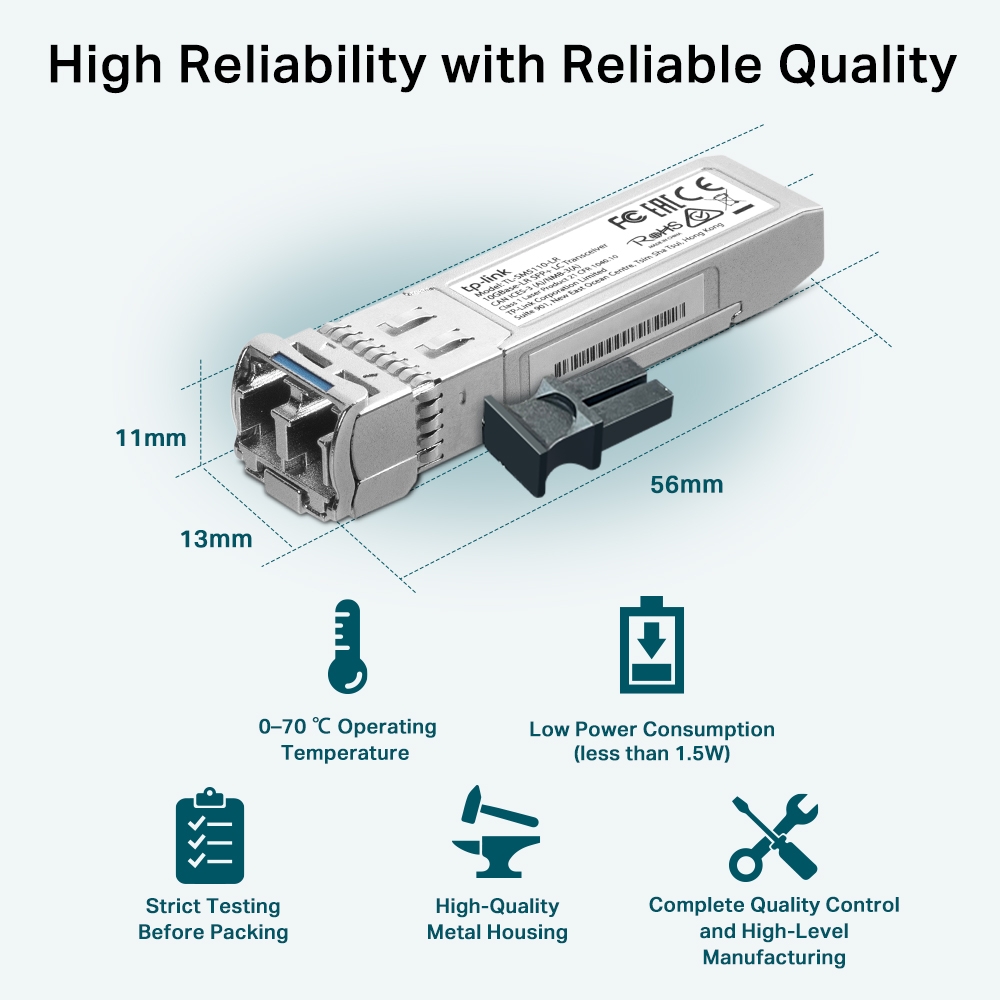

Build & Reliability

Constructed with a robust metal housing, this transceiver operates reliably across 0–70 °C ambient temperatures with low power consumption under 1.5W. Every unit undergoes full factory testing before shipping.

Technical specifications

Backed by 5 years manufacturer warranty.
