TP-Link TL-FC311B-2 Gigabit Single-mode SC WDM Bi-Directional Fiber Media Converter - TL-FC311B-2 - [SG Ready Stock]

Product Highlights

  • Gigabit 1000 Mbps throughput
  • Up to 2 km single-mode fiber
  • WDM single fiber operation
  • Plug and play setup
  • 5 year manufacturer warranty

Description

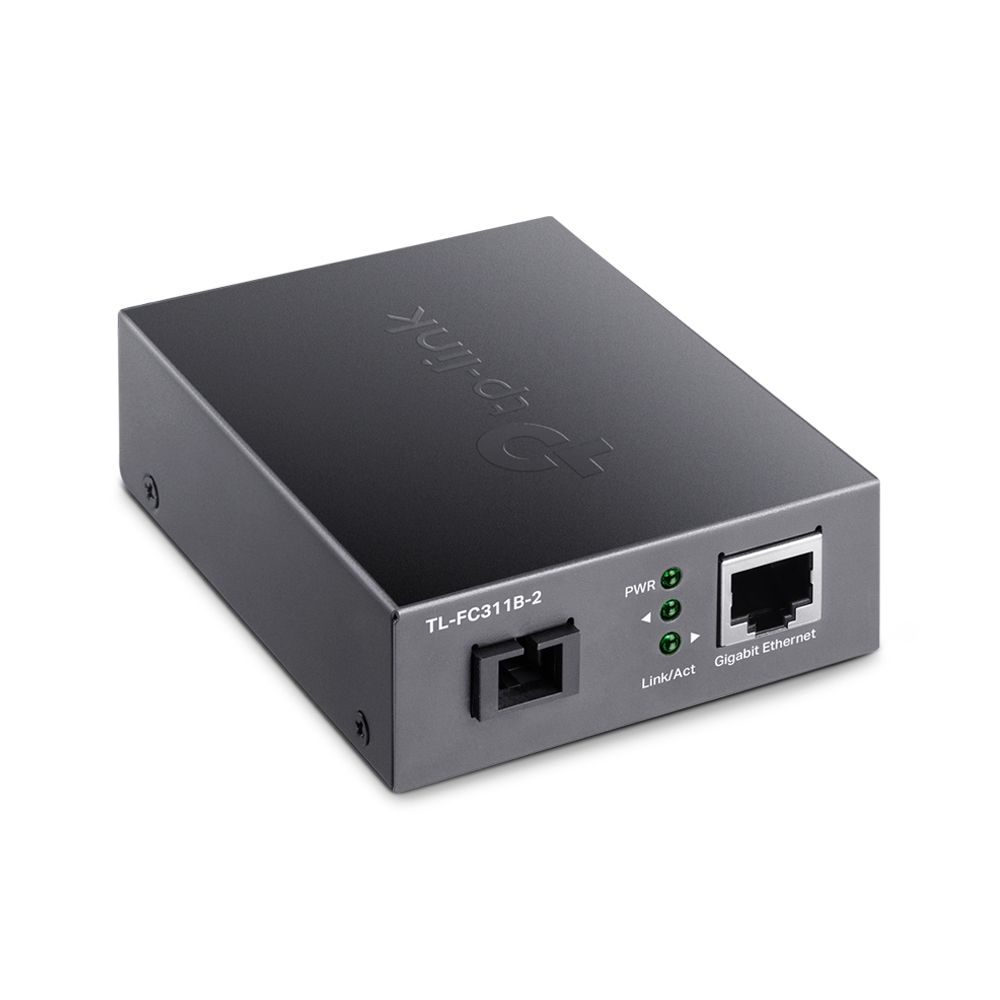

Product front view

Extend Gigabit Ethernet networks up to 2 km over single-mode fiber with this plug-and-play WDM media converter. The TL-FC311B-2 converts bidirectional 10/100/1000 Mbps Ethernet to fiber optic transmission using a single SC fiber cable, eliminating the need for dual fiber runs for point-to-point connections.

Ports & Performance

  • 1x Gigabit SC single-mode fiber port (Tx 1310 nm / Rx 1550 nm)
  • 1x Gigabit RJ45 port with Auto MDI/MDIX and auto-negotiation
  • Full-duplex operation for consistent gigabit throughput
  • Clear LED status indicators for power, link and activity

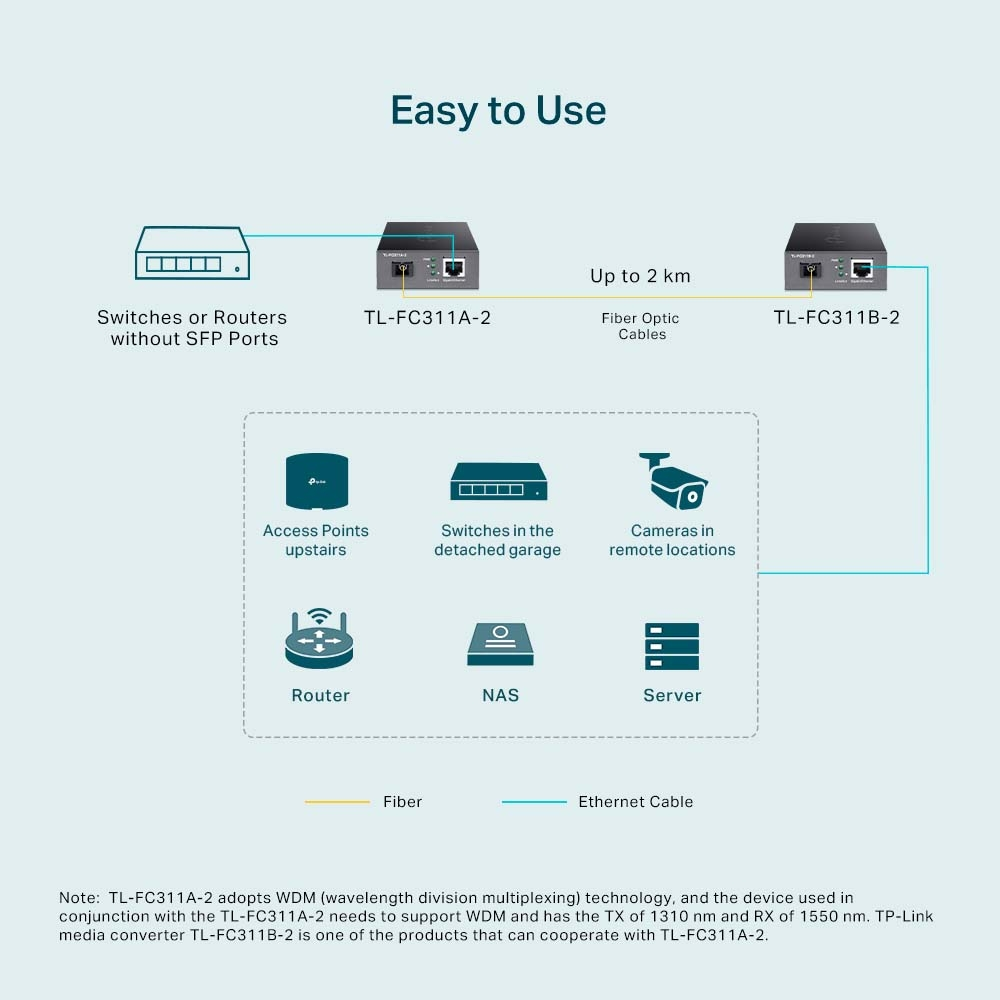

Connection diagram

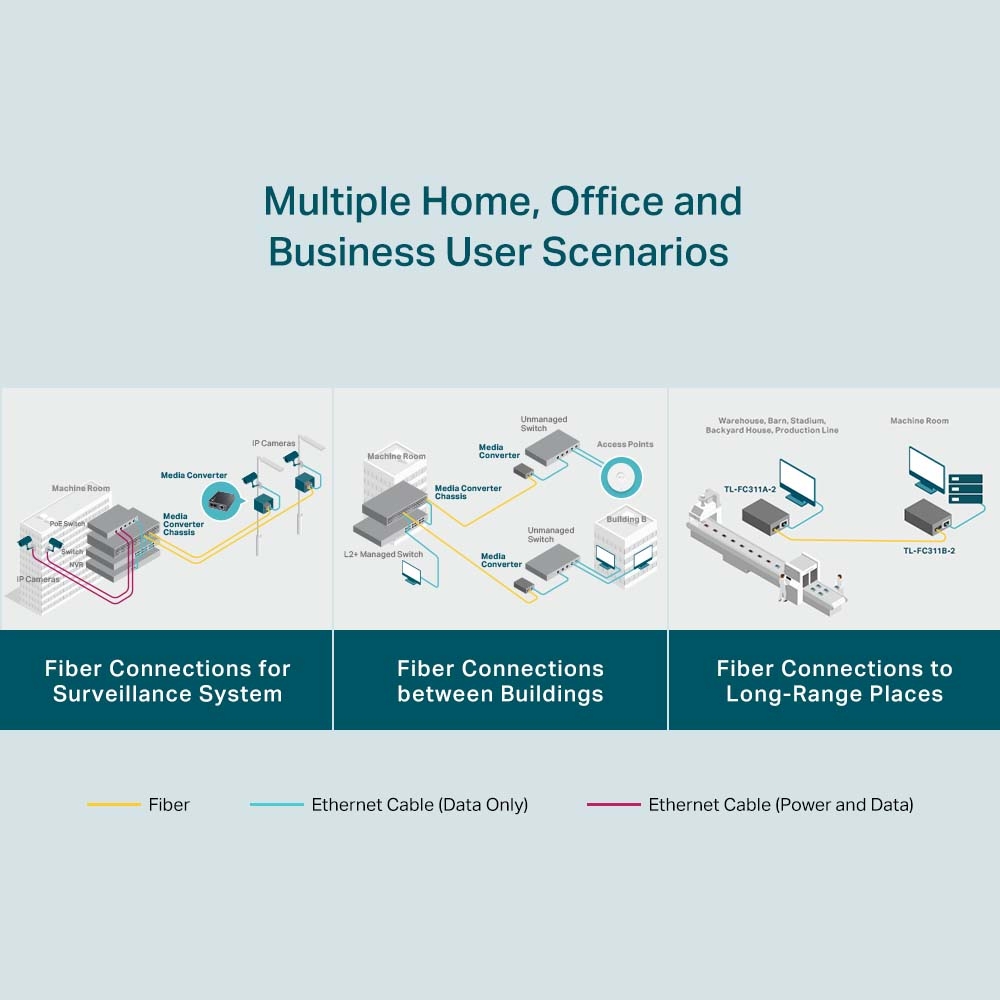

Deployment Use Cases

Ideal for extending network connections between buildings, remote security camera installations, detached garage switches, upstairs access points, NAS and server locations. Works with matching TL-FC311A-2 converter for complete point-to-point links.

Rack mount compatible with TP-Link TL-FC1420 chassis for multi-unit installations. Backed by 5 year manufacturer warranty.
