TP-Link TL-SM321A-2 Gigabit Single-Mode WDM Bi-Directional SFP Module - TL-SM321A-2 - [SG Ready Stock]

Product Highlights

2 km Gigabit fiber range
Single cable bi-directional
Standard LC connector
5 year manufacturer warranty
Low 1.5W power draw

Description

Gigabit single-mode fiber connectivity over a single cable, with up to 2 km transmission range for campus, enterprise and ISP networks.

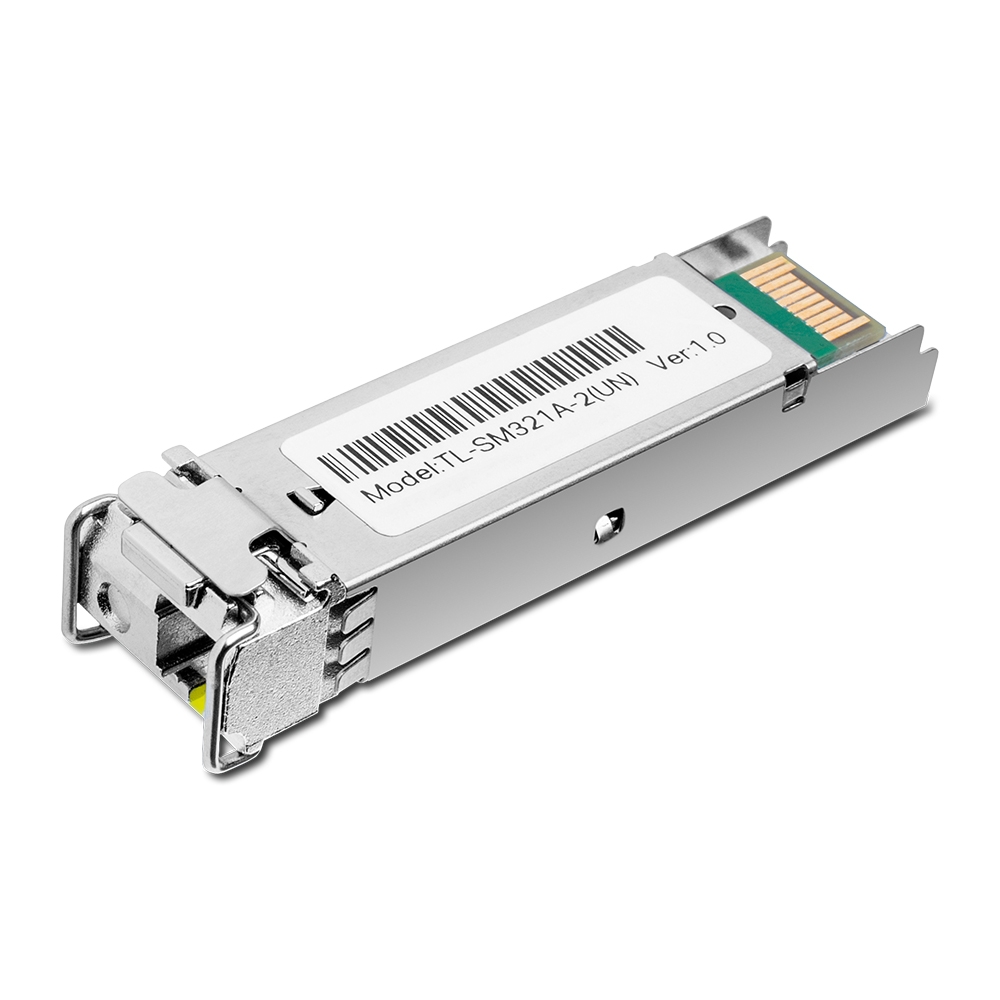

Product front view

Performance & Specifications

This TP-Link TL-SM321A-2 SFP module uses WDM bi-directional technology to transmit and receive full gigabit data over one single-mode fiber cable.

LC/UPC simplex connector
TX: 1550nm / RX: 1310nm wavelength
9/125 µm single-mode fiber compatible
Maximum transmission distance: 2 km

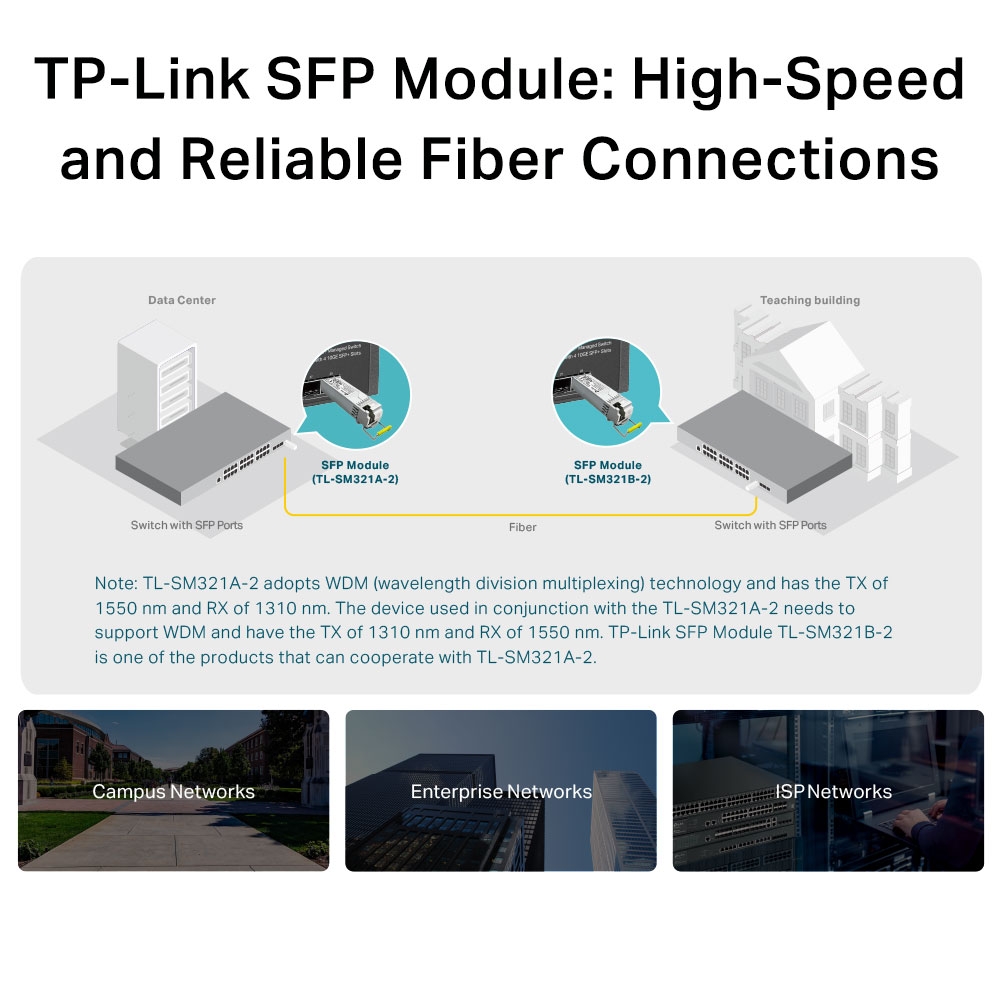

Connection diagram

Compatibility

Works with all standard SFP interface devices including network switches, routers, firewalls, NAS, servers, media converters and data centre hardware. Pair with TL-SM321B-2 for matched end-to-end fiber links.

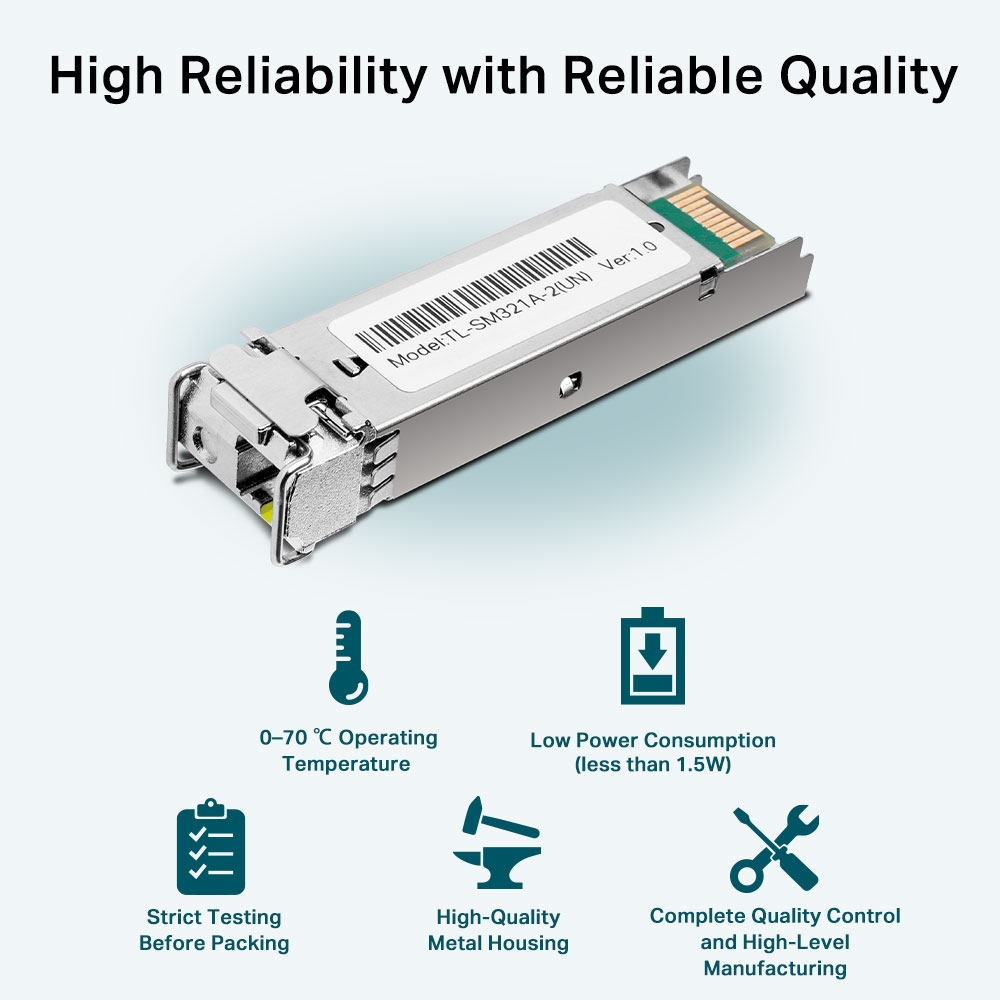

Reliability

Built for continuous operation:

0–70 °C operating temperature range
Less than 1.5W low power consumption
Metal housing for durability
Full quality testing before shipping
Backed by 5 year manufacturer warranty

Reliability features

Important Note

This module operates at TX 1550nm / RX 1310nm. Matching remote modules must use the reverse wavelength pairing (TX 1310nm / RX 1550nm) for correct operation.

Purchase Links

OmniCommerce provides indexing metadata. Checkout happens on marketplace listing URLs.

FAQs

What is the maximum transmission range of this SFP module?

This SFP module supports a maximum transmission distance of 2 km when used with standard 9/125 µm single-mode fiber cable.

Does this module work with standard SFP port devices?

Yes — this SFP module is compatible with all standard SFP interface devices including network switches, routers, firewalls, NAS, servers and media converters.

What module should I use at the opposite end of the fiber link?

Pair this TL-SM321A-2 module with the TL-SM321B-2 module for correct end-to-end operation. The paired unit uses reversed transmit and receive wavelengths.

What is the power consumption of this module?

This SFP module operates at less than 1.5W power draw during active use.

What connector type does this module use?

This SFP module uses a standard LC/UPC simplex fiber connector.

What warranty is provided with this module?

This SFP module comes with an official 5 year manufacturer warranty.

What operating temperature range is supported?

This module is rated for continuous operation between 0 °C and 70 °C ambient temperature.

Can this module be used with multi-mode fiber?

No — this SFP module is designed exclusively for use with 9/125 µm single-mode fiber cable only.
