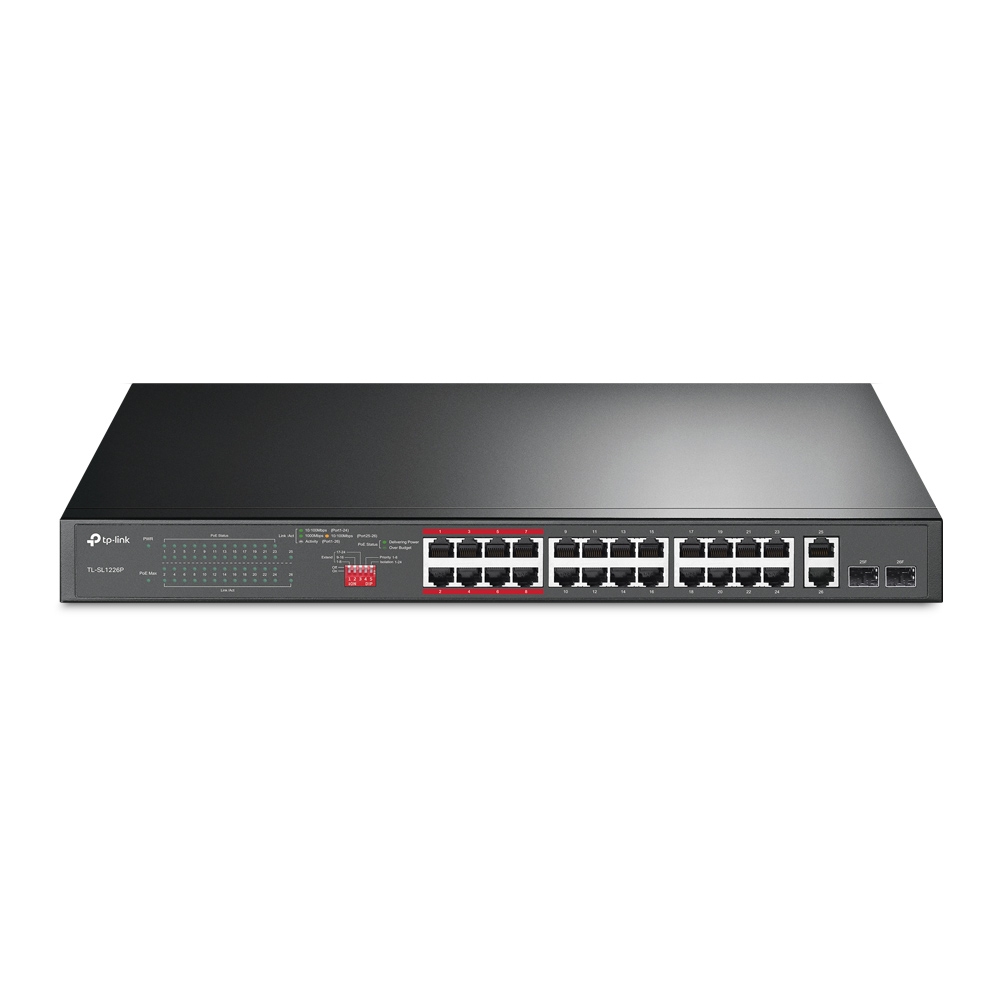

TP-Link TL-SL1226P 24-Port 10/100 Mbps + 2-Port Gigabit Rackmount PoE+ Switch - TL-SL1226P - [SG Ready Stock]

Rackmount unmanaged PoE+ switch built for surveillance and small business networks, delivering 24-port power over Ethernet with a total 250 W power budget. Ideal for IP cameras, access points and IP phone deployments.

Port Configuration

• 24 × 10/100 Mbps 802.3at/af PoE+ ports (up to 30 W per port)
• 2 × Gigabit non-PoE uplink ports
• 2 × Combo Gigabit SFP slots for fibre connectivity

Key Operating Modes

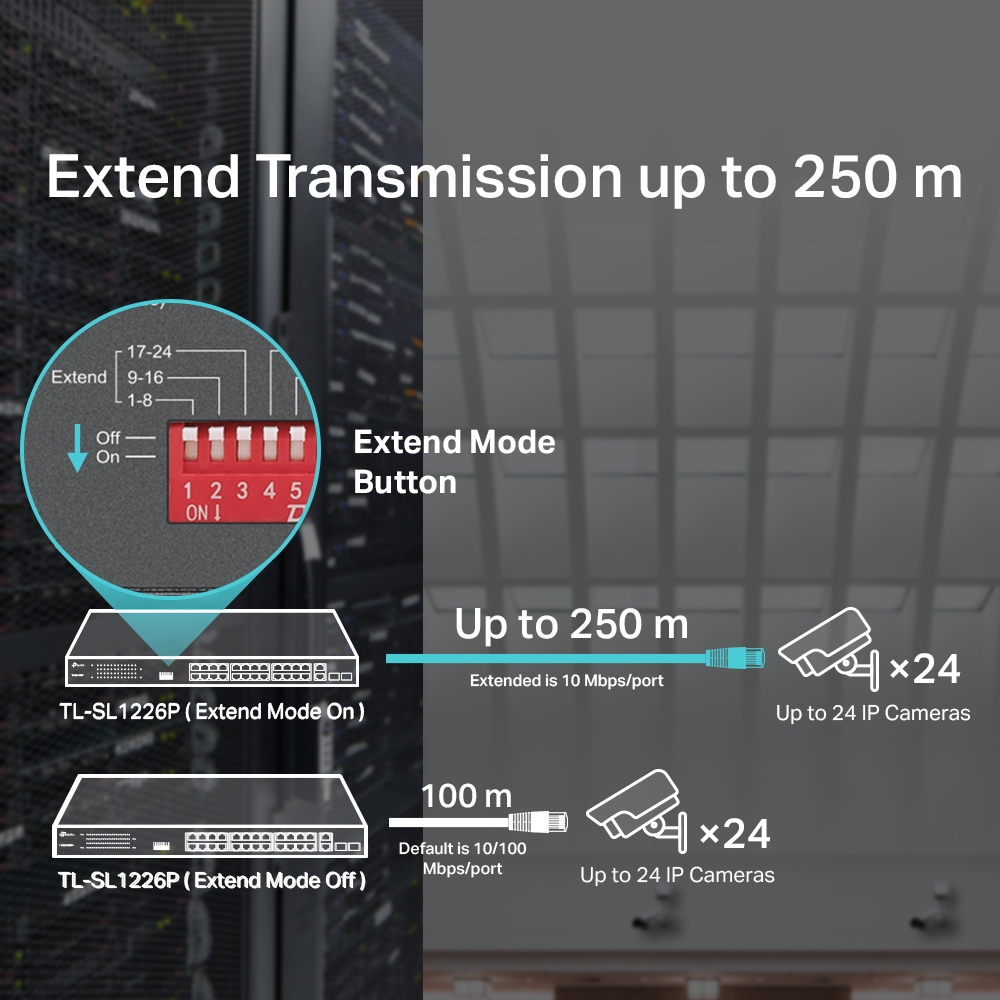

Extend Mode

Enable via front DIP switch to extend PoE and data transmission up to 250 m for long-distance camera placements, operating at 10 Mbps for stable long-range connectivity.

Priority Mode

Reserve power and bandwidth for ports 1-8 to guarantee uninterrupted video quality for critical surveillance devices during high network load.

Isolation Mode

Segregate client ports to prevent unwanted cross-traffic between connected devices, improving network security and performance.

Build & Deployment

1U 19-inch rack-mountable steel chassis for standard server rack installation. Fully plug and play with no configuration required; all operating modes are controlled via physical front-panel DIP switches. Includes 5-year manufacturer warranty.
