TP-Link Omada EAP660 HD AX3600 Ceiling Mount Dual-Band Wi-Fi 6 Access Point - EAP660 HD - [SG Ready Stock]

Product Highlights

1000+ concurrent clients
AX3600 Wi-Fi 6 performance
2.5Gbps wired port
Omada cloud management
5 year warranty

Description

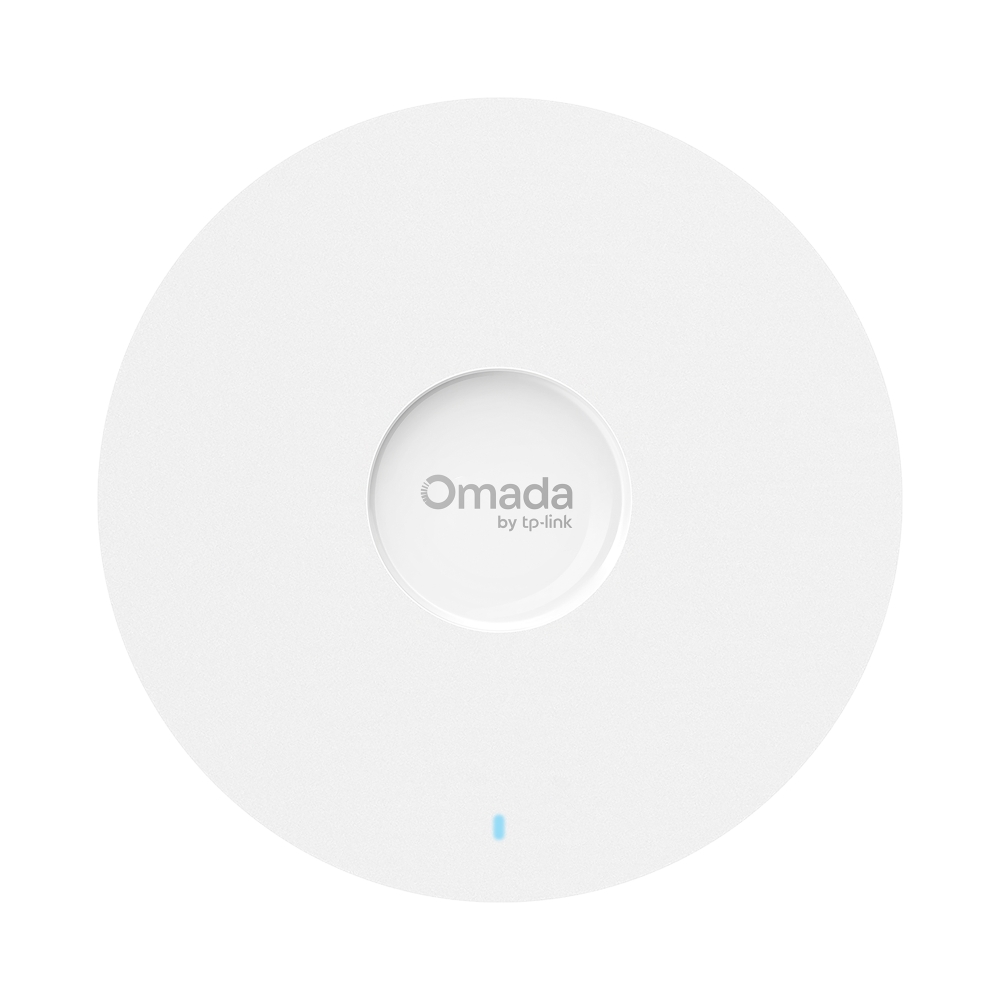

Omada EAP660 HD Ceiling Access Point

Built for high-density environments, the Omada EAP660 HD AX3600 Wi-Fi 6 Access Point delivers reliable concurrent connectivity for over 1000 client devices with combined dual-band speeds up to 3550 Mbps.

Performance & Connectivity

1148 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz total throughput
2.5Gbps RJ45 wired port for multi-gigabit backhaul
8 internal high-gain antennas with beamforming technology
MU-MIMO, Airtime Fairness and load balancing for even distribution across connected devices

Deployment & Management

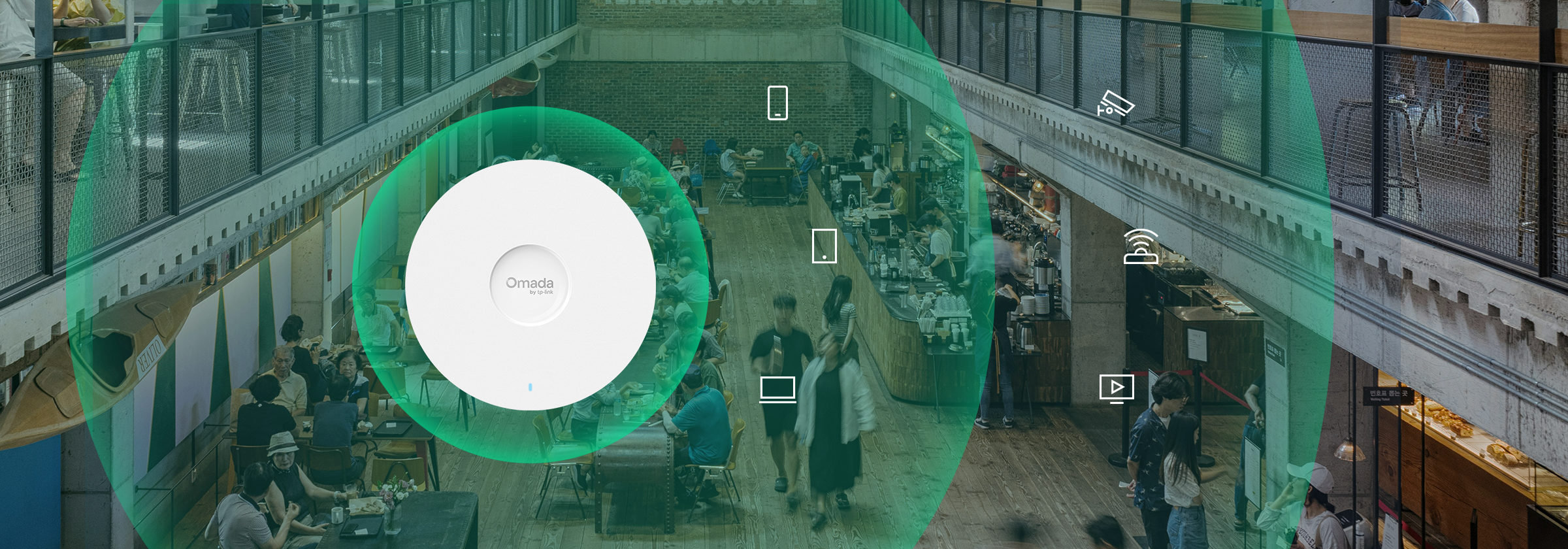

Mounting and installation view

Clean low-profile ceiling mount design fits discreetly into standard drop ceiling grids. Supports both 802.3at PoE and 12V DC power for flexible installation. Full centralized management via Omada SDN Controller or mobile Omada App, with seamless roaming, band steering and zero-touch provisioning for large network deployments.

Ideal Use Cases

Designed for offices, retail spaces, cafes, education facilities and public venues requiring consistent, high-capacity wireless coverage. Backed by 5 year manufacturer warranty.

Purchase Links

OmniCommerce provides indexing metadata. Checkout happens on marketplace listing URLs.

FAQs

How many concurrent devices can this access point support?

This access point is designed to reliably support over 1000 concurrent connected client devices.

What is the total wireless throughput of this unit?

This access point delivers combined dual-band throughput of up to 3550 Mbps: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.

Can this be managed remotely?

Yes — this access point supports full centralized management via the Omada SDN Controller and mobile Omada App.

What power options are available?

This access point supports both 802.3at PoE power over ethernet and 12V DC power input for flexible installation.

Does this support seamless client roaming?

Yes — this access point includes seamless roaming, band steering and zero-touch provisioning for large network deployments.

What is the wired backhaul port speed?

This access point includes a 2.5Gbps RJ45 ethernet port for multi-gigabit wired backhaul.

What warranty is provided for this product?

This access point comes with a 5 year manufacturer warranty.

What mounting options are supported?

This access point features a low-profile design suitable for standard drop ceiling grids, and also supports wall mounting.

Signals

Intent Summary

Enterprise-grade dual-band Wi-Fi 6 ceiling access point designed for high-density environments, delivering reliable concurrent connectivity for over 1000 devices with centralized network management.

LLM Description

High density Wi-Fi 6 ceiling access point for business and public environments. Reliable connectivity for large numbers of concurrent users with centralized management.

App Management Support

true

Band Support

2.4 GHz, 5 GHz

Capable of

centralized network management, delivers 3550 Mbps combined throughput, load balancing for even traffic distribution, provides 2.5Gbps wired backhaul, seamless client roaming across access points, supports 1000+ concurrent client devices

Coverage Area

351 sqm and above

Ethernet Port Speed

2.5 Gbps

Form Factor

round ceiling mount

Mesh System Support

true

Plug Type

Port Count

Suitable for context

24/7 continuous operation, drop ceiling installations, existing omada mesh networks, high density public spaces, multi room office environments

Throughput Speed

3550

Used for audience

business IT administrators, education facility managers, network installers, retail operations teams, small business owners

Used for event

cafe public wifi, education campus wifi, office network deployment, retail venue wifi installation, small business network upgrade

Wall Mountable

true

Warranty Length

5 years
