TP-Link TL-FC111PB-20 10/100M PoE Single-mode SC WDM Fiber Media Converter 20km - TL-FC111PB-20 - [SG Ready Stock]

Canonical URL: https://omnicommerce.sg/catalog/a881ffd6-acfd-48fc-b25a-0df361258018

ACO Profile: v1 • Last Run: 20 Jul 2026, 01:30 pm

TP-Link TL-FC111PB-20 10/100M PoE Single-mode SC WDM Fiber Media Converter 20km - TL-FC111PB-20 - [SG Ready Stock]

Product Highlights

  • 20km single-mode fiber range
  • 802.3af 15.4W PoE output
  • WDM bi-directional transmission
  • Plug and play deployment
  • 5 year manufacturer warranty

Description

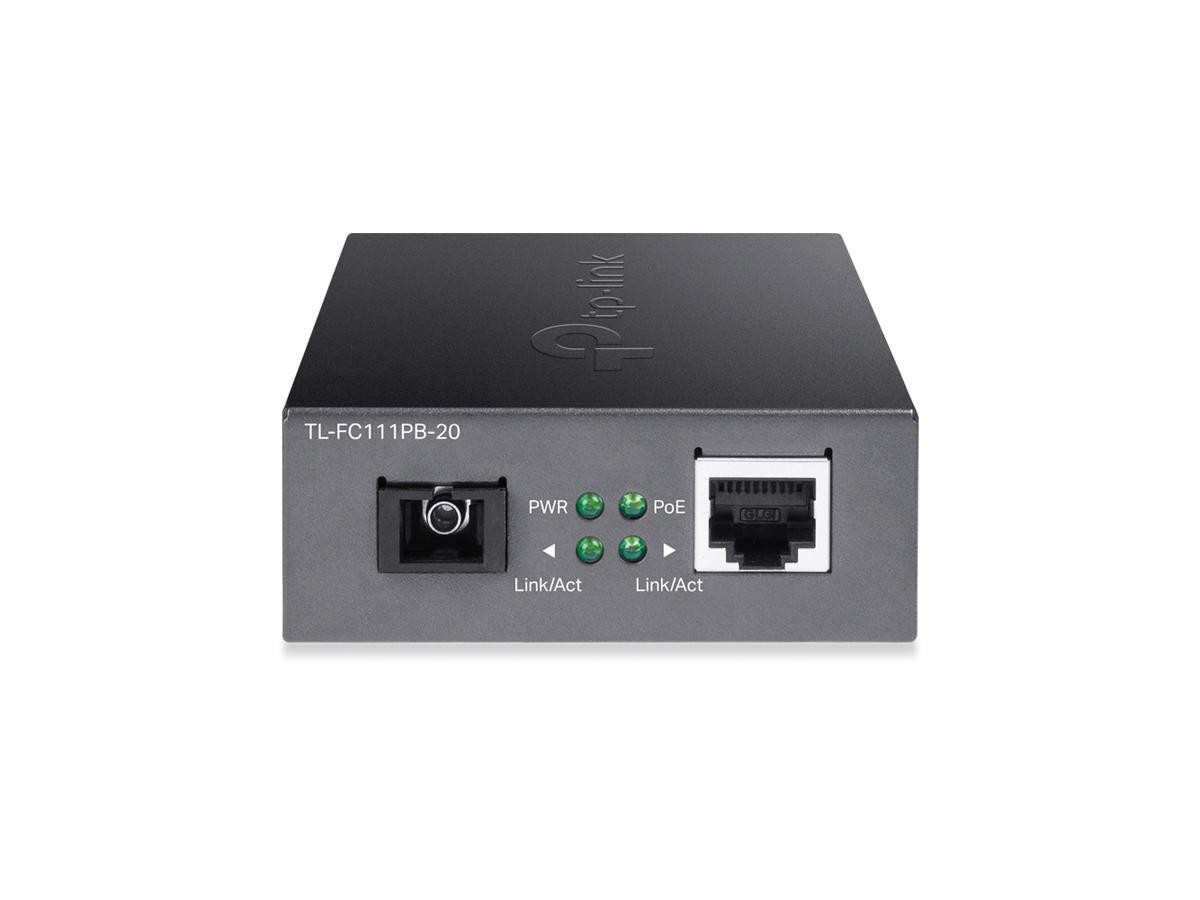

Product front view

Extend Ethernet and PoE power over long distance fiber connections with the TP-Link TL-FC111PB-20 WDM media converter. This compact industrial-grade device converts 10/100Mbps Ethernet to single-mode fiber, delivering both data and 802.3af PoE power over distances up to 20 km using a single fiber cable.

Core Performance

  • 1x 100Mbps SC single-mode fiber port (WDM Bi-Directional, Tx 1310 nm / Rx 1550 nm)
  • 1x 10/100M PoE RJ45 port with Auto MDI/MDIX
  • 15.4W 802.3af compliant PoE power budget
  • Full-duplex operation with automatic link negotiation

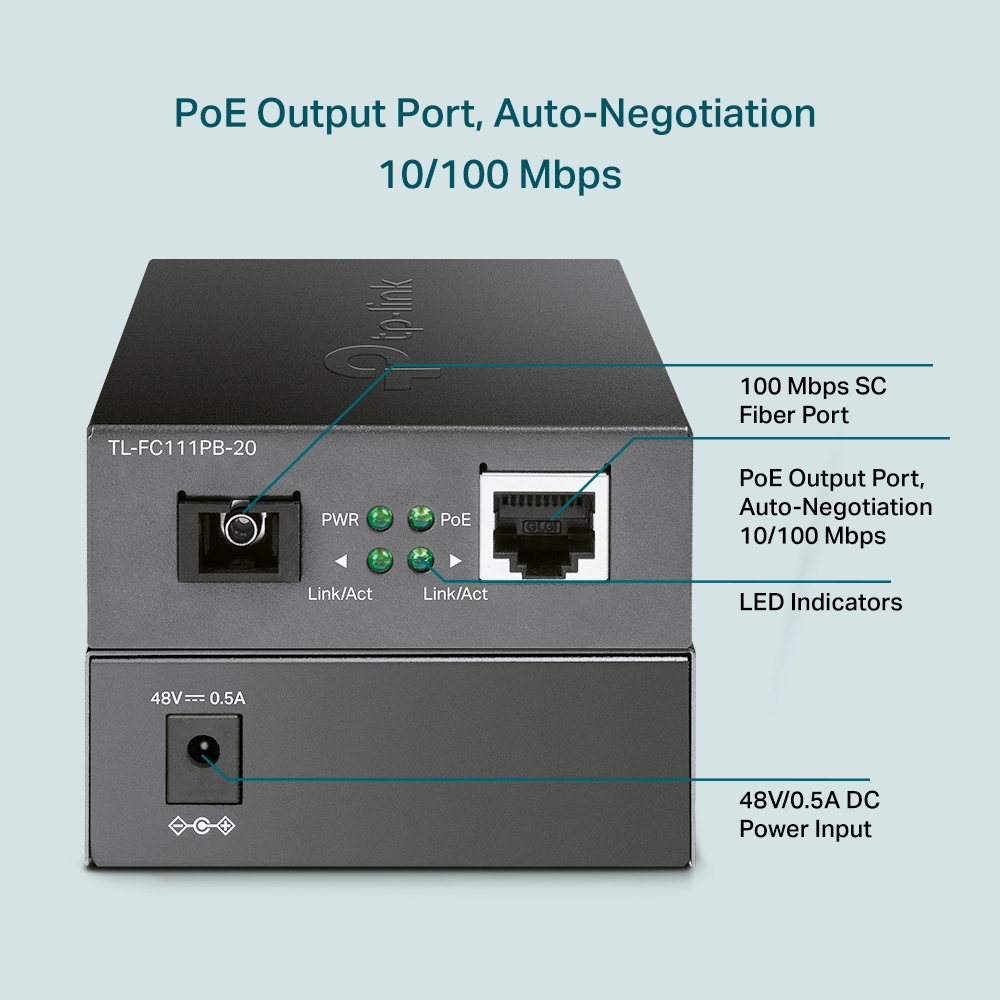

Port and indicator diagram

Deployment Use Cases

Designed for reliable long-range network extension, this converter is ideal for:

  • IP surveillance camera installations
  • Remote access point deployments
  • Building-to-building network links
  • Industrial and outdoor network locations

Plug and play operation requires no configuration. Simply connect fiber and Ethernet cables for immediate operation. Clear LED status indicators provide real-time feedback for power, PoE, and link activity.

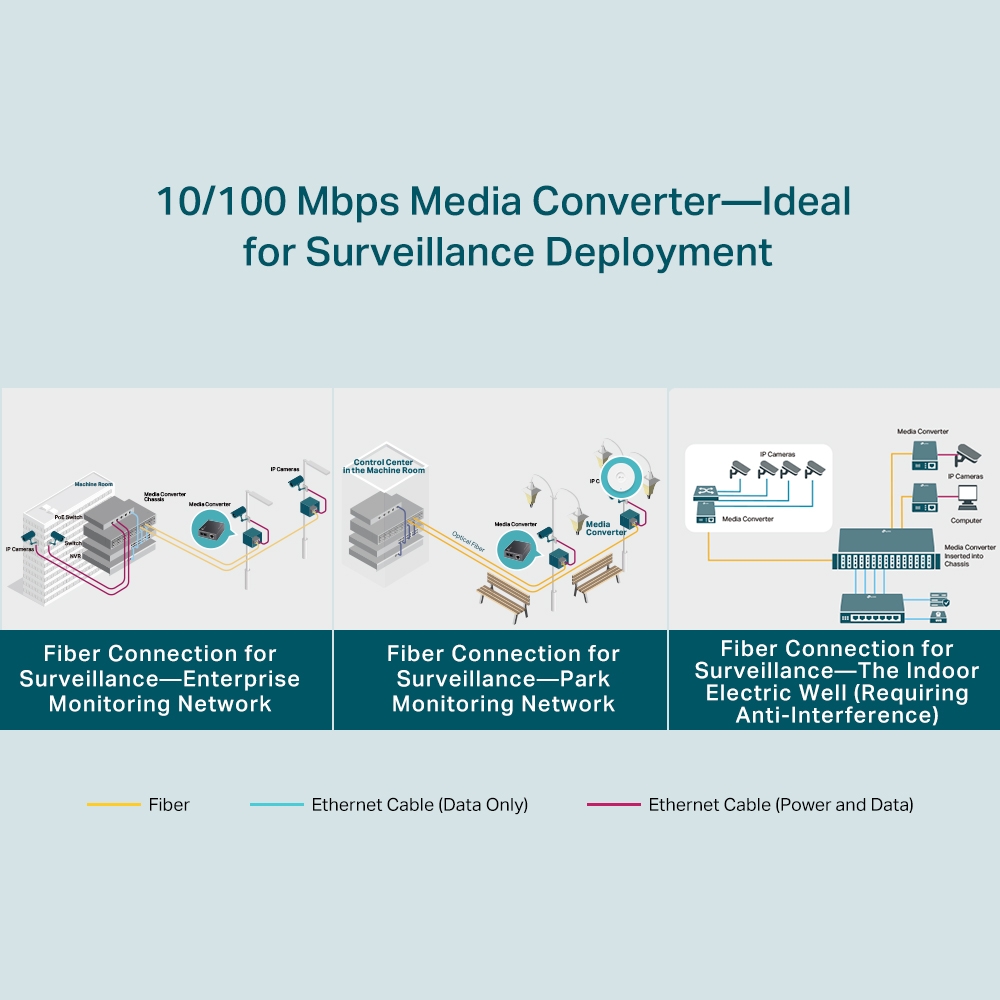

Connection topology diagram

Backed by 5 years manufacturer warranty for commercial and enterprise deployments.
