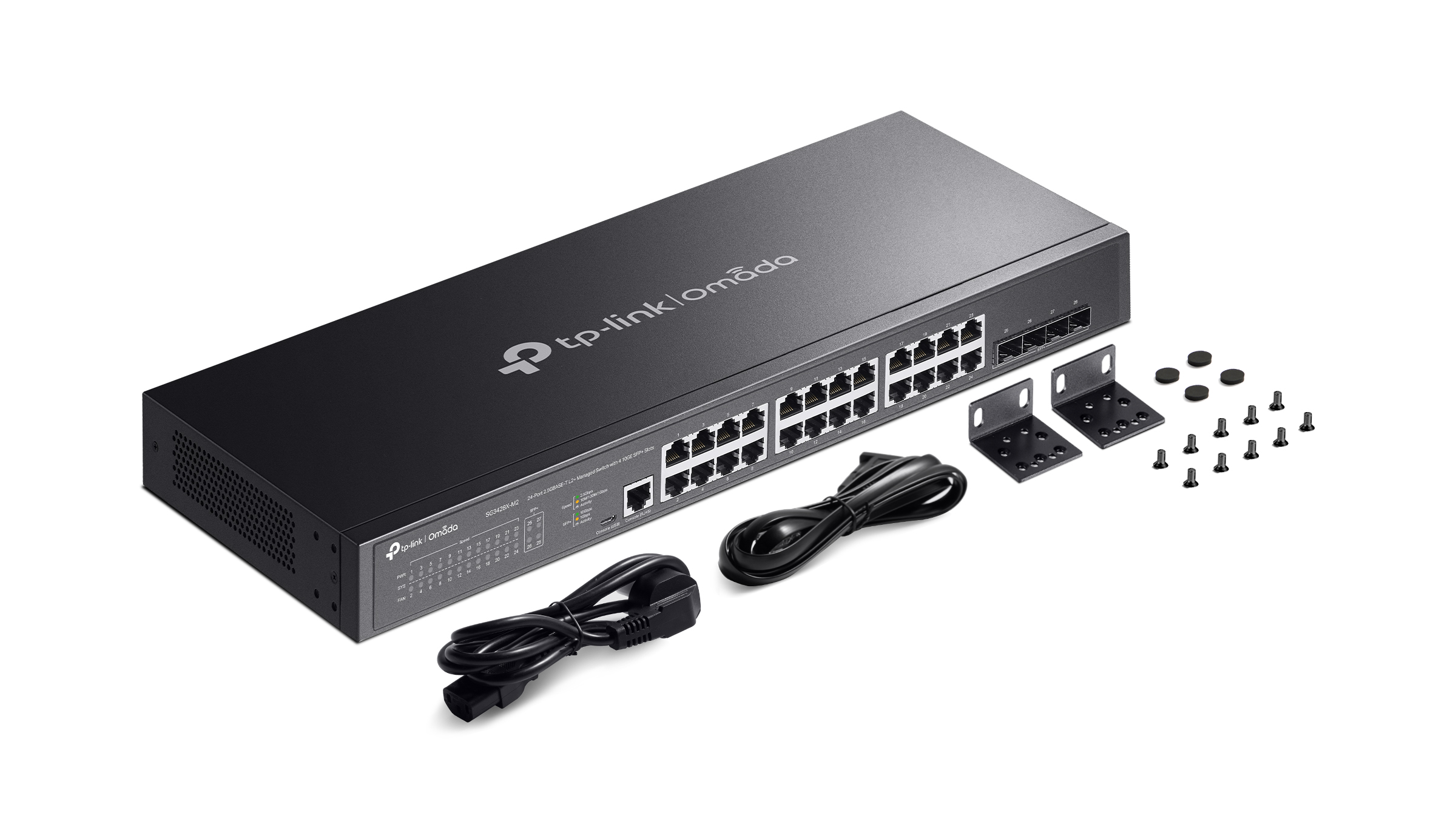

TP-Link Omada JetStream SG3428X M2 24-Port 2.5GBASE-T L2+ Managed Switch, 4x 10GE SFP+ Slots

The TP-Link Omada JetStream SG3428X M2 is a high-performance L2+ managed network switch designed for modern business and SMB networking deployments.

Port & Bandwidth

Delivers 24 x 2.5 Gbps RJ45 ports for high-speed wired connections to workstations, access points, and network devices, paired with 4 dedicated 10 Gbps SFP+ uplink slots for non-blocking high-bandwidth backbone connectivity.

Management & Deployment

Fully integrated with the TP-Link Omada SDN platform, supporting Zero-Touch Provisioning, centralized cloud management, remote monitoring, and configuration via the Omada mobile app or web interface. Standalone management is also available via web UI, CLI, console port, Telnet, SSH, and SNMP.

Network Features

Includes static routing for efficient internal traffic management, L2/L3/L4 QoS prioritization, IGMP snooping for optimized voice and video streaming, and comprehensive security controls including IP-MAC-Port binding, ACLs, port security, DoS protection, storm control, DHCP snooping, and 802.1X RADIUS authentication.

Physical Design

1U rack mountable metal chassis with quiet variable speed fan operation, ESD and surge protection, and dual firmware images for reliable operation.

Specifications

• Dimensions: 440 × 180 × 44 mm
• Net weight: 2.25 kg
• Max power consumption: 45.1 W
• MTBF: 275,277 hours @ 25°C
