TP-Link Omada SG2005P-PD 5-Port Gigabit Smart PoE Switch IP55 Weatherproof - SG2005P-PD - [SG Ready Stock]

Product Highlights

  • IP55 Weatherproof Rated
  • 64W Total PoE Budget
  • Omada SDN Managed
  • Wall / Pole Mountable
  • 5 Year Warranty

Description

Omada SG2005P-PD Outdoor PoE Switch

IP55 weatherproof 5-port Gigabit smart switch designed for outdoor and exposed network deployments. Powered entirely via PoE++ input, this unit extends power and data up to 200m without additional local power supplies, making it ideal for perimeter cameras, outdoor access points and remote site networking.

Port & Power Configuration

  • 1× Gigabit PoE++ input port (90W maximum input)
  • 4× Gigabit PoE+ output ports with 64W total PoE budget
  • Compliant with 802.3af / 802.3at PoE standards

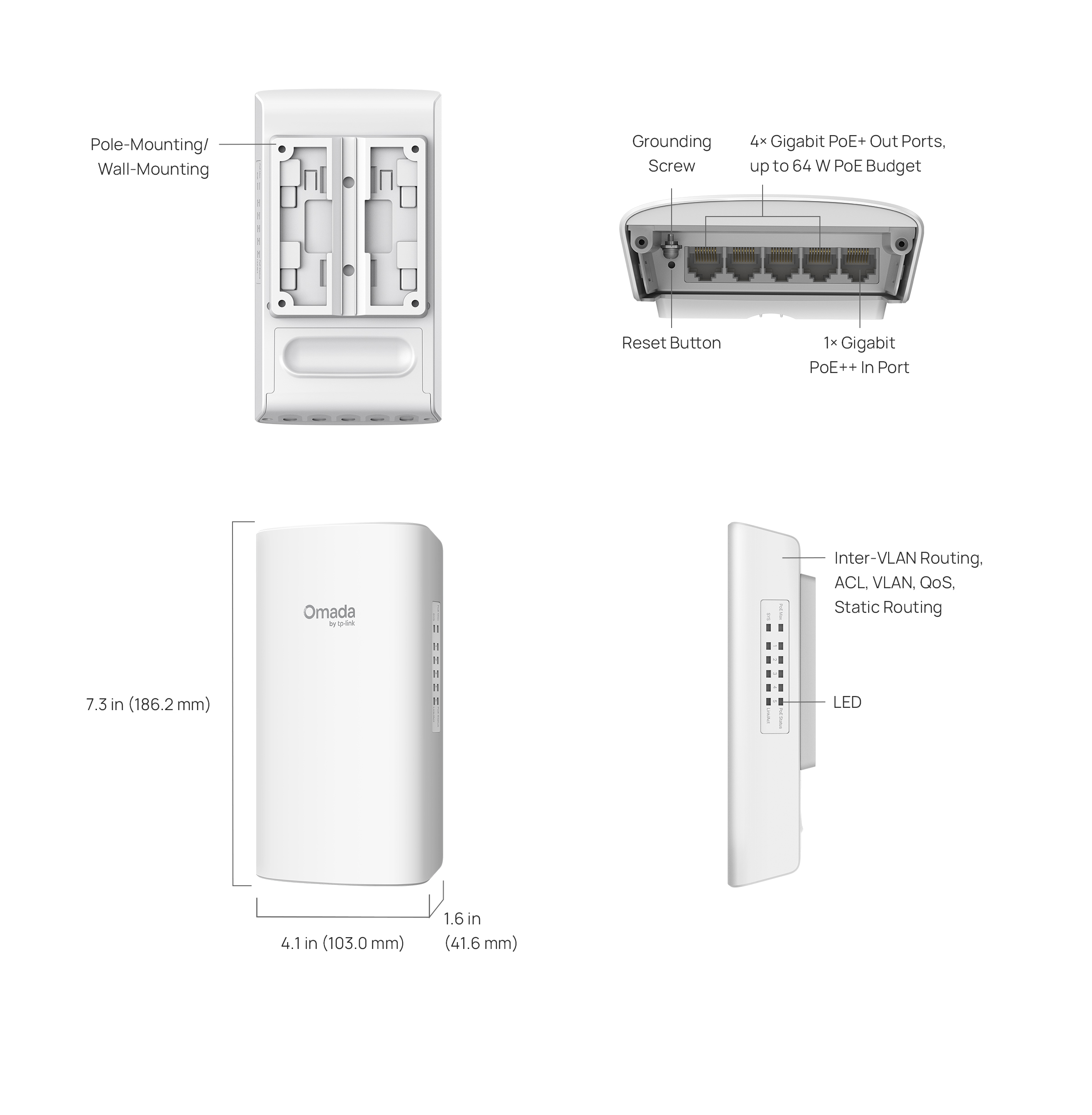

Port layout and mounting interface

Deployment & Mounting

Weather sealed plastic enclosure rated IP55 for dust and water resistance. Supports both wall mounting and pole mounting with included hardware, suitable for building exteriors, car parks, campus grounds and outdoor event installations.

Omada SDN Integration

Fully managed via the Omada SDN Controller platform for unified network administration. Includes advanced switching features: 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, QoS traffic prioritisation, ACL access control, 802.1x authentication, LACP link aggregation and IPv6 support.

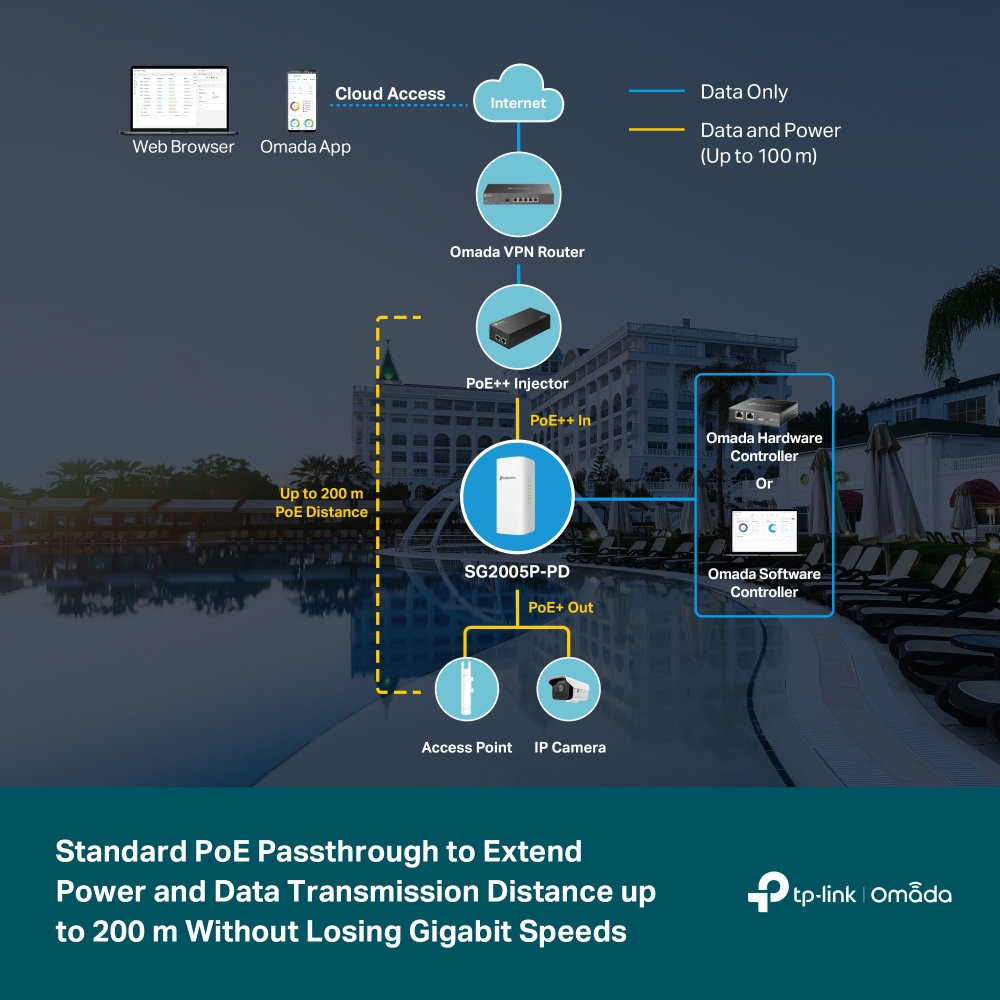

Typical outdoor deployment topology

5 year manufacturer warranty.

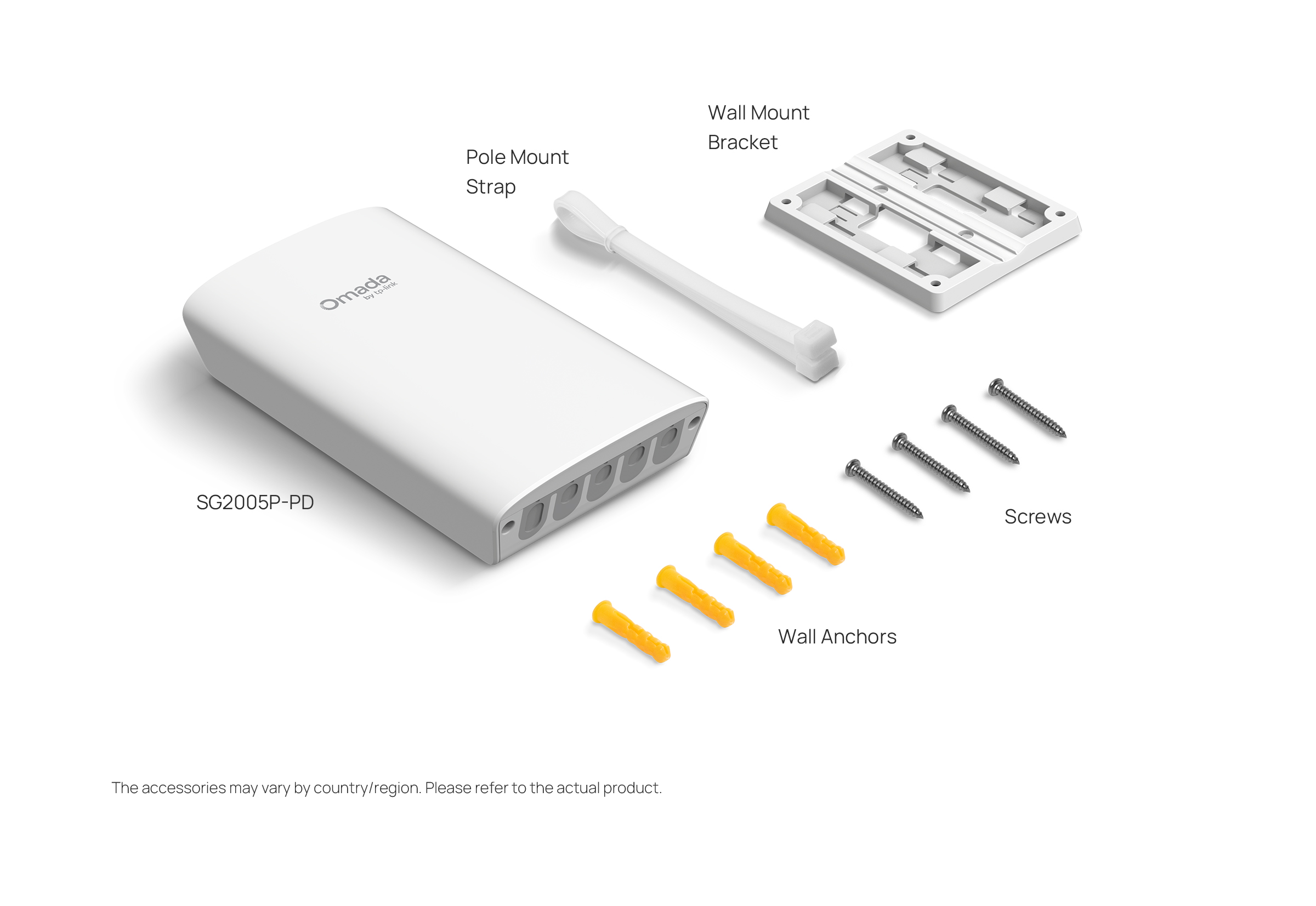

Package Contents

  • 1× SG2005P-PD Switch
  • Wall mount bracket
  • Pole mount strap
  • Mounting screws and wall anchors
