TP-Link TL-SF1009P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+ - TL-SF1009P - [SG Ready Stock]

Product Highlights

  • 65 W total PoE budget
  • 250 m extended transmission
  • Port priority bandwidth
  • Plug and play setup
  • Steel desktop chassis

Description

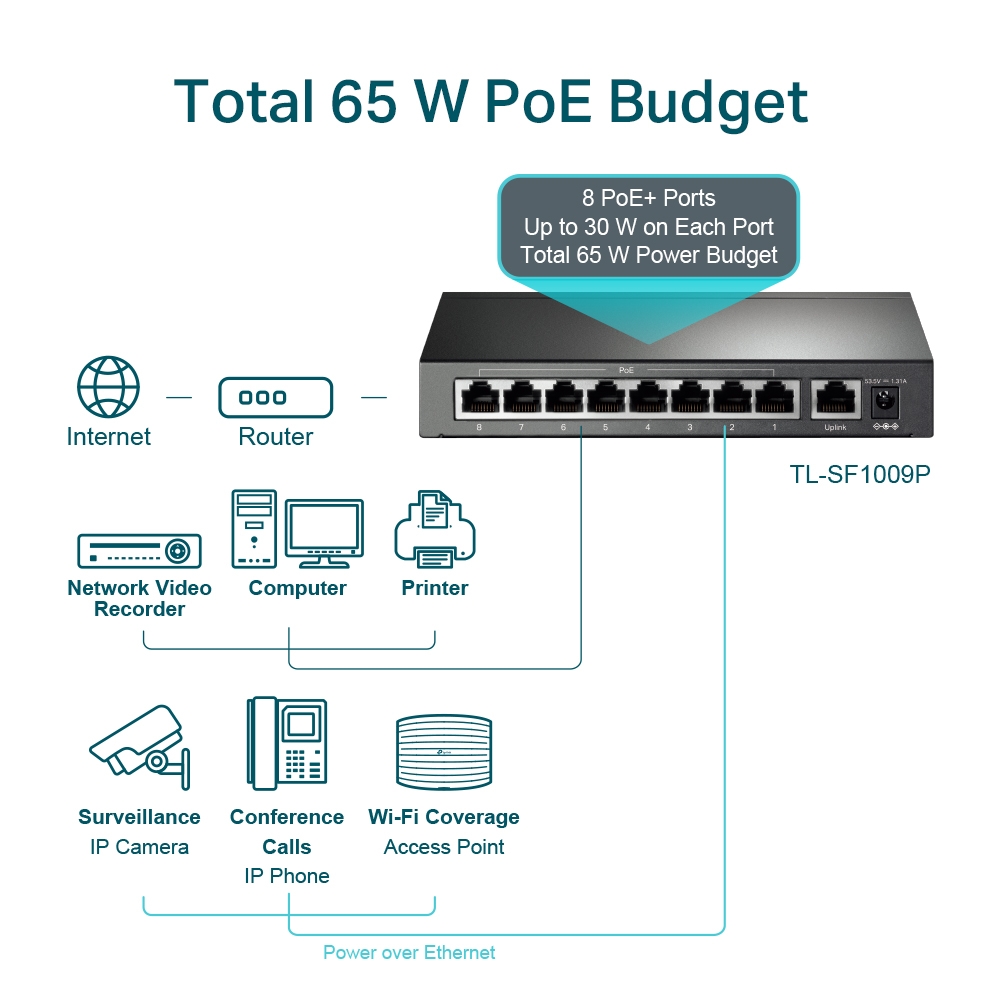

TP-Link TL-SF1009P PoE Switch Diagram

Reliable 9-port desktop network switch with 8 dedicated PoE+ ports, built for small office, surveillance, and home network deployments. Delivers consistent 10/100 Mbps connectivity with a total 65 W PoE power budget to power IP cameras, Wi-Fi access points, IP phones and network devices directly over Ethernet cable.

Core Performance

  • 8 x 10/100 Mbps PoE+ ports compliant with 802.3at/af standards
  • 1 x dedicated non-PoE uplink port for router or network backbone connection
  • Up to 30 W power output per individual PoE port
  • Rugged steel desktop chassis for durable long-term operation

Operating Modes

Extend Mode: Toggle to extend PoE transmission up to 250 metres at 10 Mbps for long-distance surveillance camera placement, ideal for perimeter and building exterior installations. Priority Mode: Assign guaranteed bandwidth priority to ports 1 and 2 for critical devices such as NVR recorders or primary Wi-Fi access points to ensure uninterrupted operation under load. Isolation Mode: Enable port isolation to prevent cross-traffic between connected devices for improved network security and broadcast storm protection.

Setup & Operation

No configuration required. Simply connect power and network cables; the switch automatically negotiates connection speeds and power allocation. Includes 5 year manufacturer warranty.

Ideal for small business networks, retail store surveillance, home office setups and distributed Wi-Fi deployments.
